Wet Prime Waste Water / Trash Pumps

Designed and engineered to the highest standards. Manufactured to meet the requirements of industry and government municipal services. With an open impeller and self priming capabilities, these pumps are made to transfer high volumes of liquids with up to 76mm diameter of suspended solids content in industrial waste water. Available as a bare shaft pump or complete with an engine or motor drive. Optional ductile iron or 316 stainless steel impeller and wear plates - all ex stock. For further technical detail refer to Tech data sheets under camry plus range TRASH PUMPS and High Head Pumps, self priming centrifugal pumps”

Wet Prime Waste Water / Trash Pumps - Camry Plus Series

Wet Prime Waste Water / Trash Pumps - Camry Plus
Part number Inlet outlet mm Impeller size mm Maximum Solid size mm Maximum flowm 3/hr Maximum head m Speed rpm Drive size Hp Weight Product Sheet
Kg

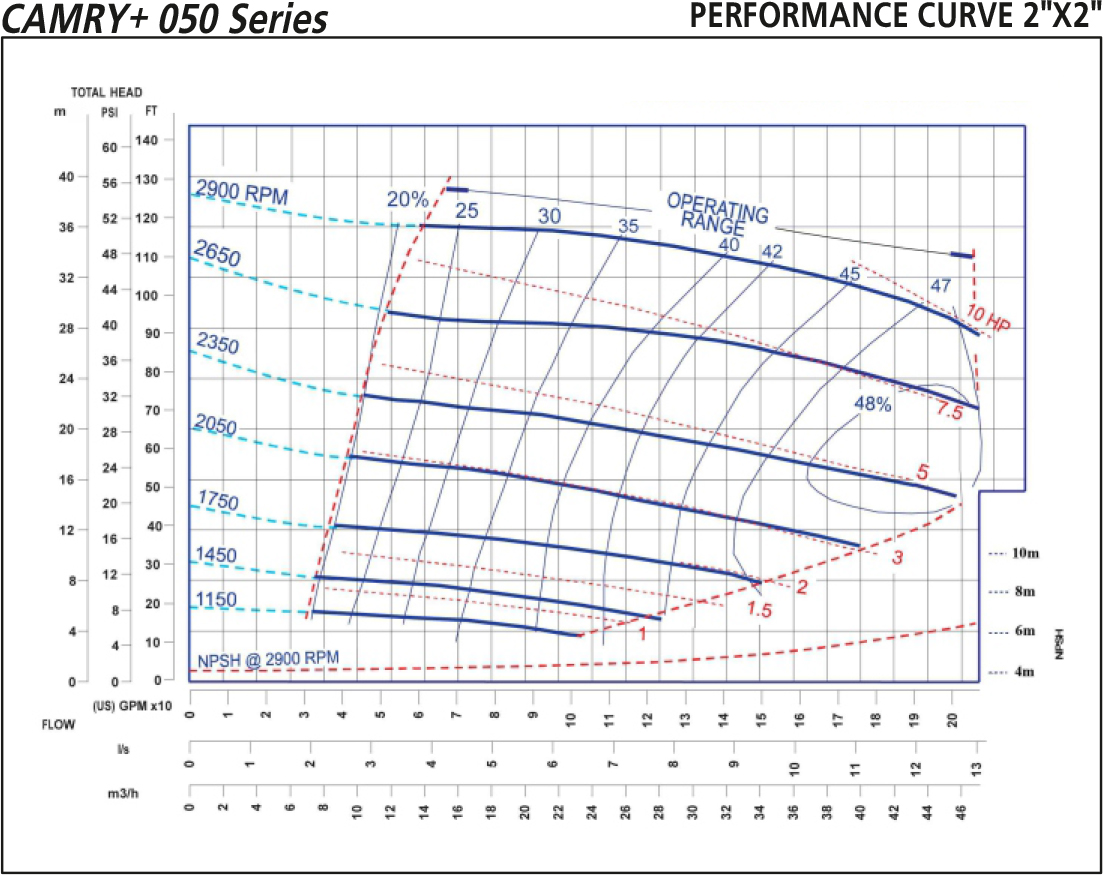

Camry Plus 050 50 160 44 46.5 36 2900 10 156

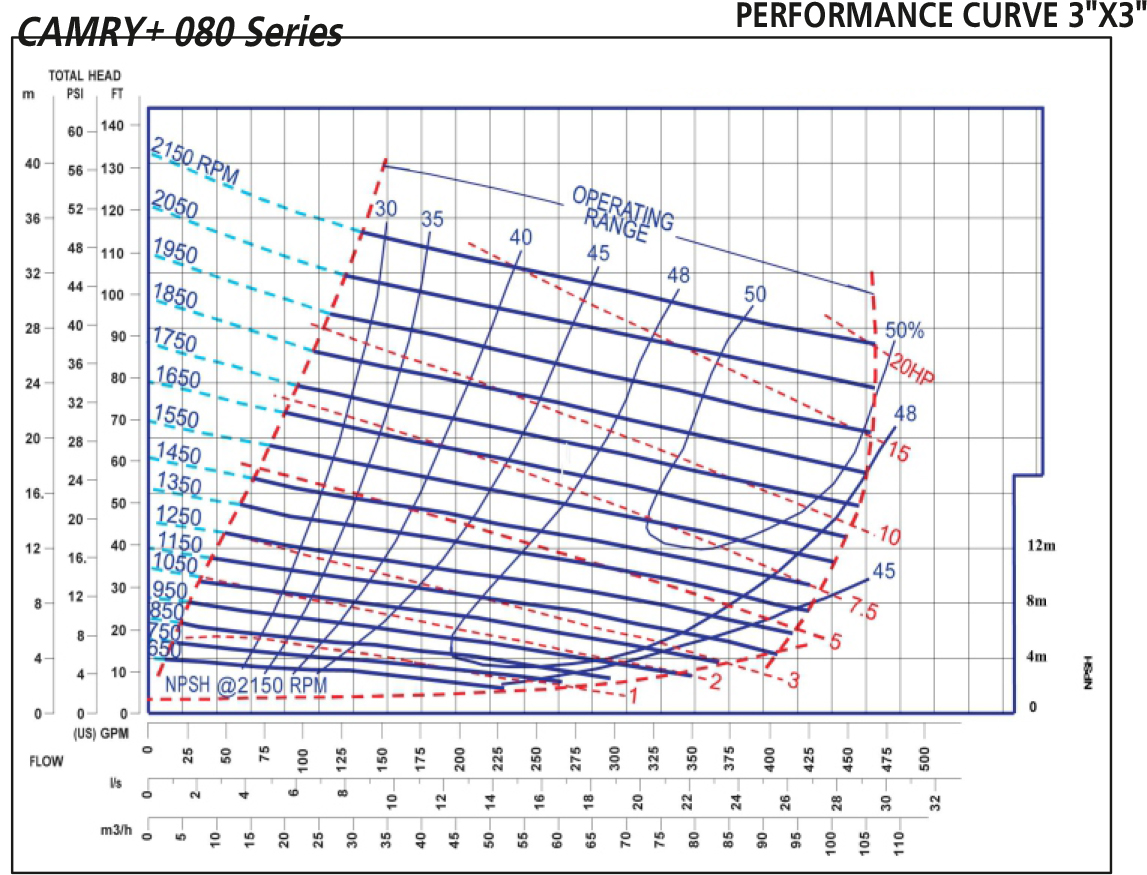

Camry Plus 80 80 223 64 106 35 2150 20 270

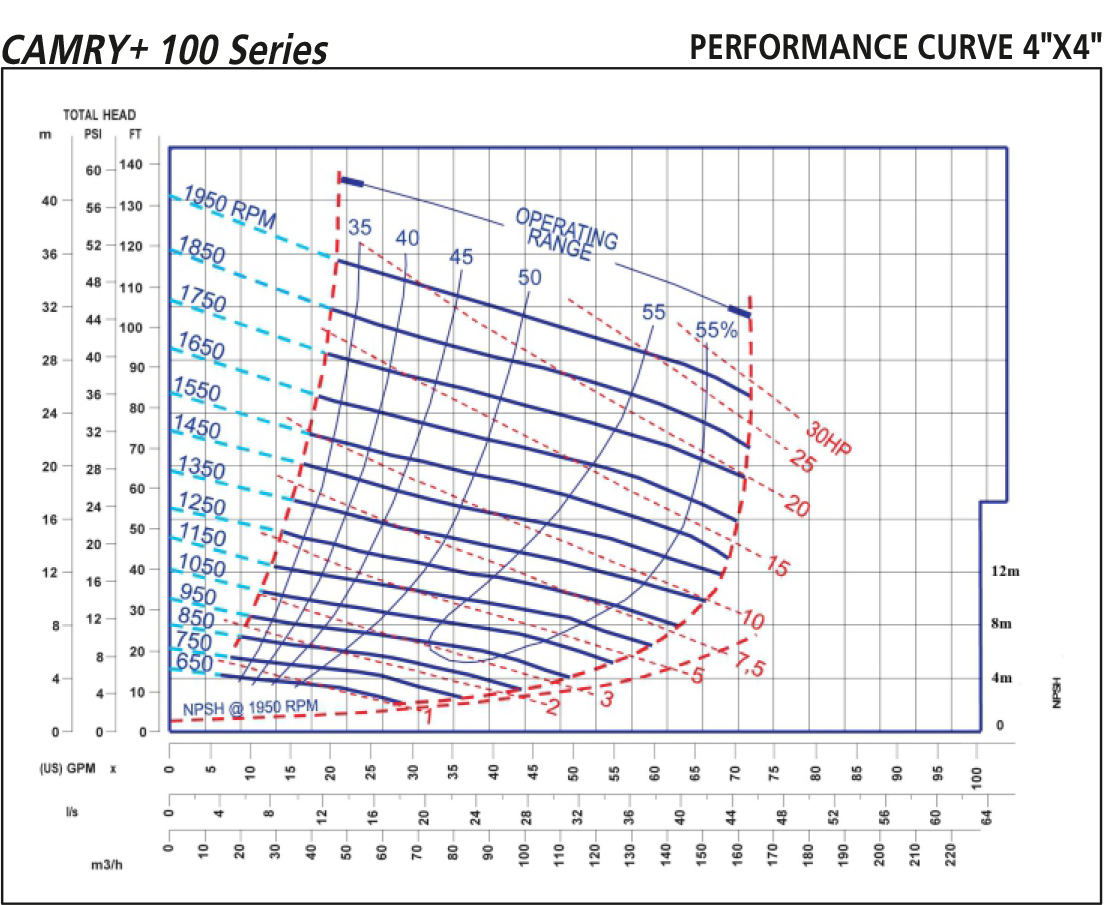

Camry Plus 100 100 248 76 163 36 1950 30 375

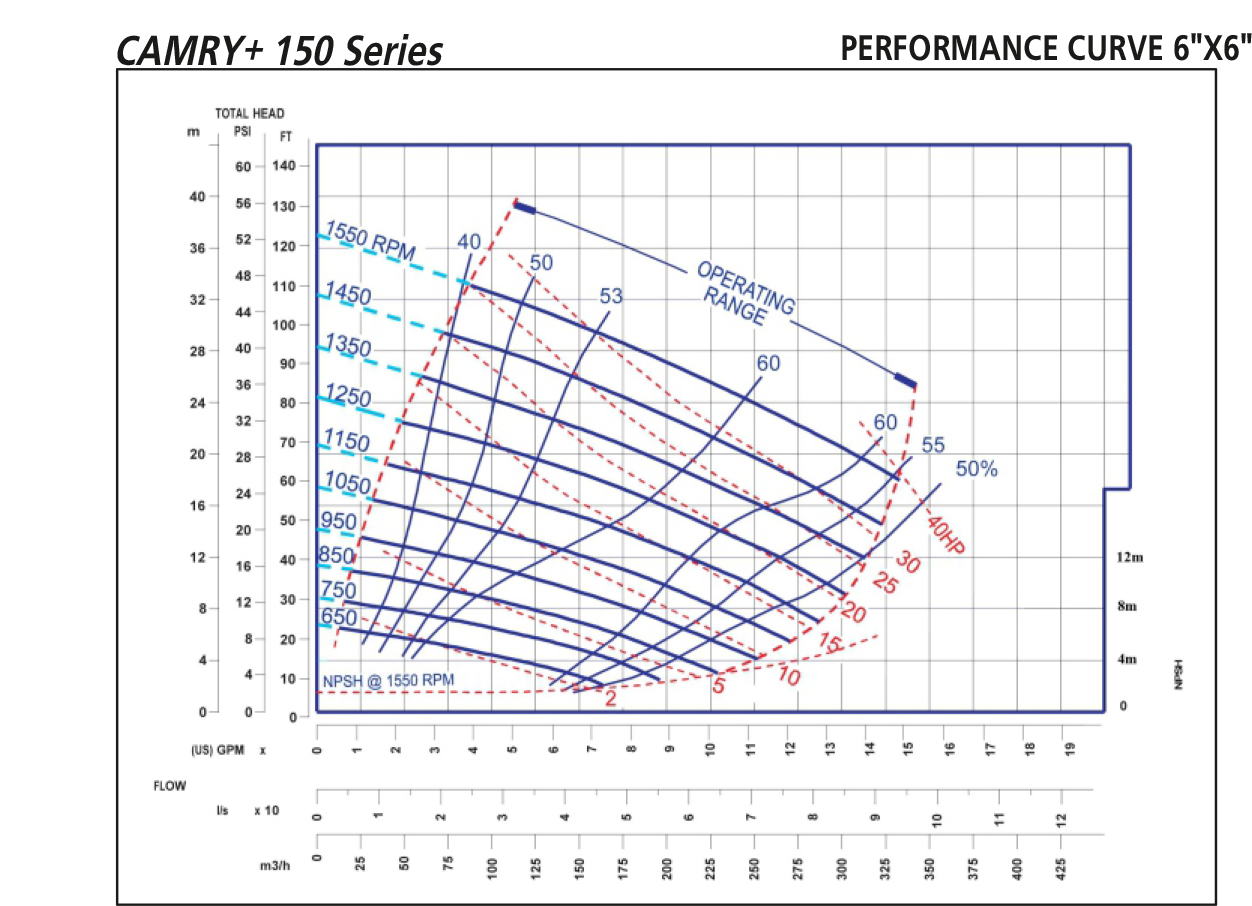

Camry Plus 150 150 315 76 330 33.5 1550 40 487

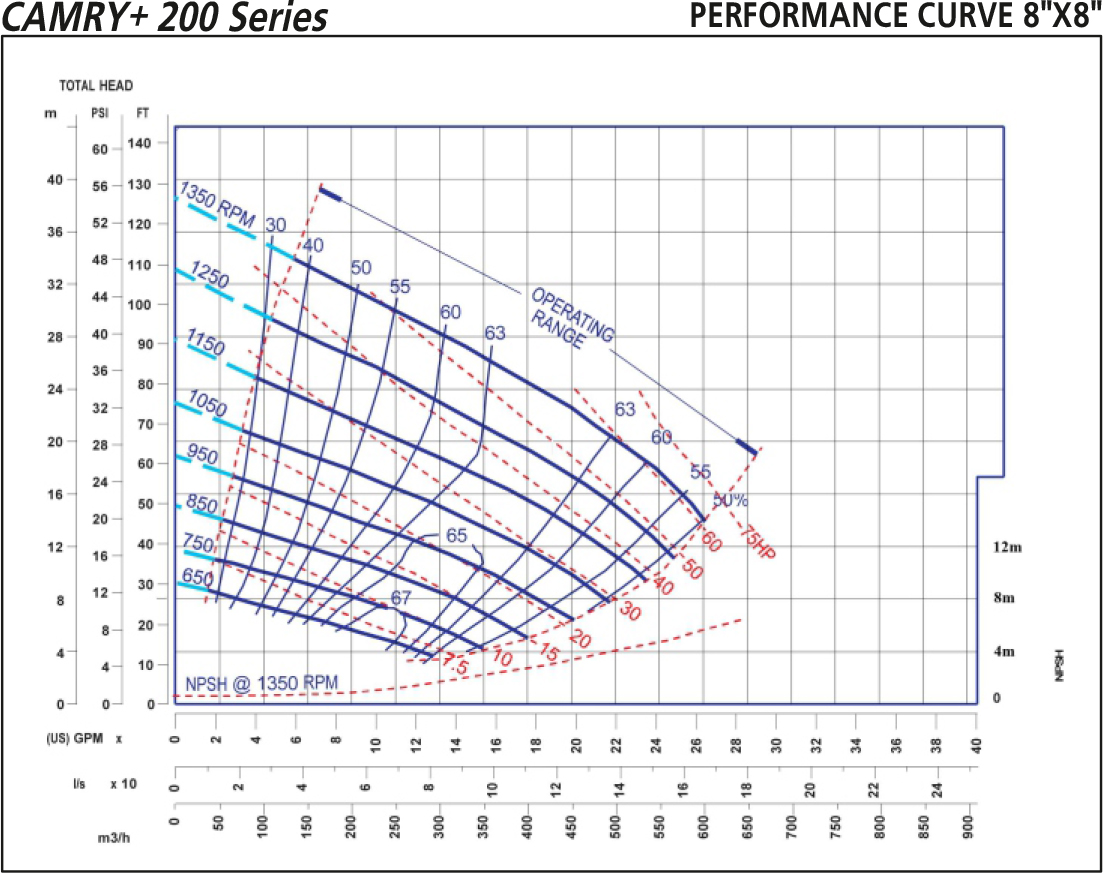

Camry Plus 200 200 375 76 600 34 1550 75 905

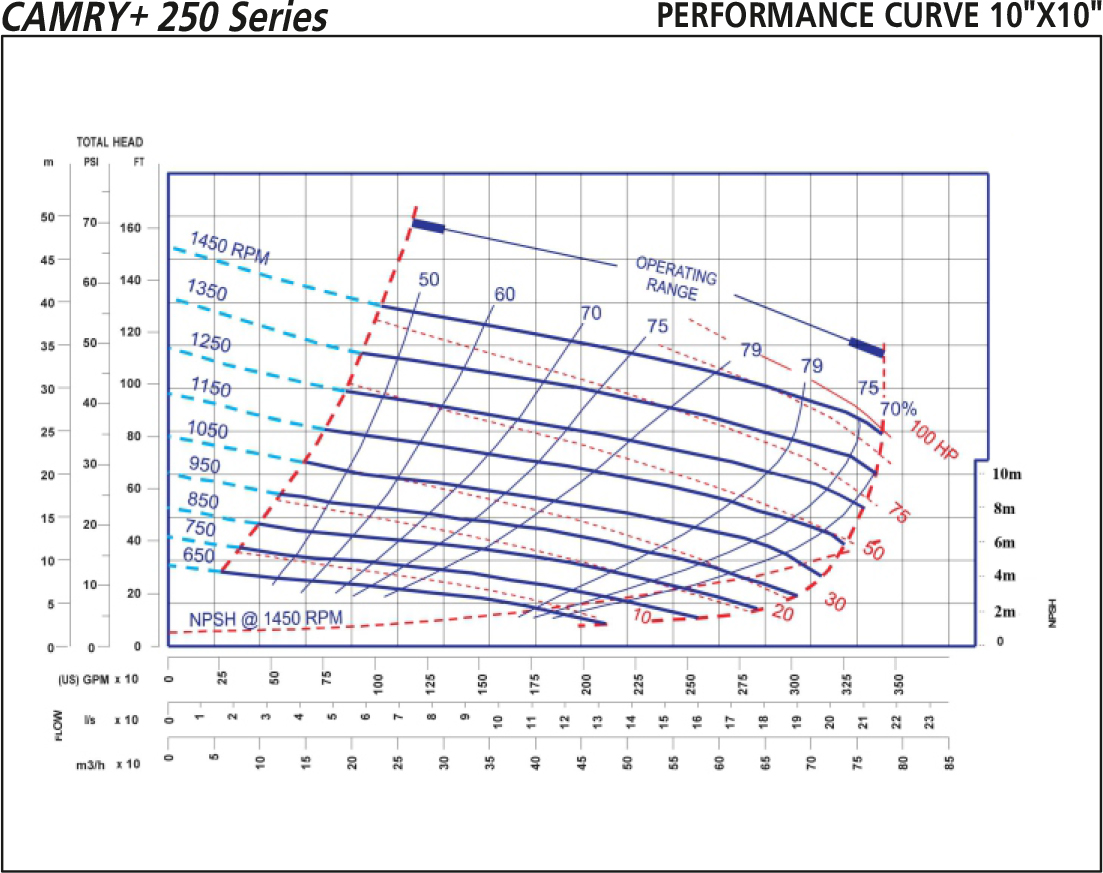

Camry Plus 250 250 375 76 780 40 1450 100 943
Wet Prime Waste Water / Trash Pumps - Camry Plus SERIES
Part number Inlet outlet mm Impeller size mm Maximum Solid size mm Maximum flowm 3/hr Maximum head m Speed rpm Drive size Hp Weight Product Sheet
Kg

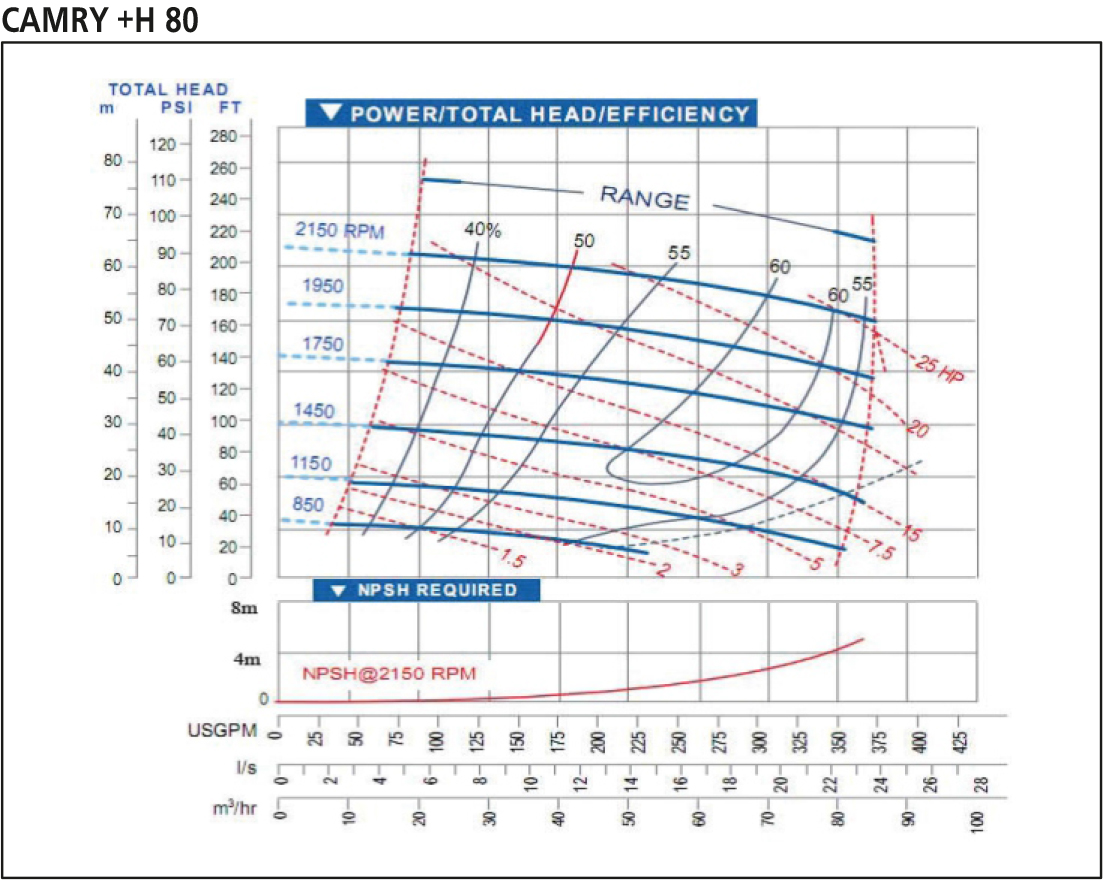

Camry Plus +H 80 80 279.4 20.5 86 62 2150 25 214

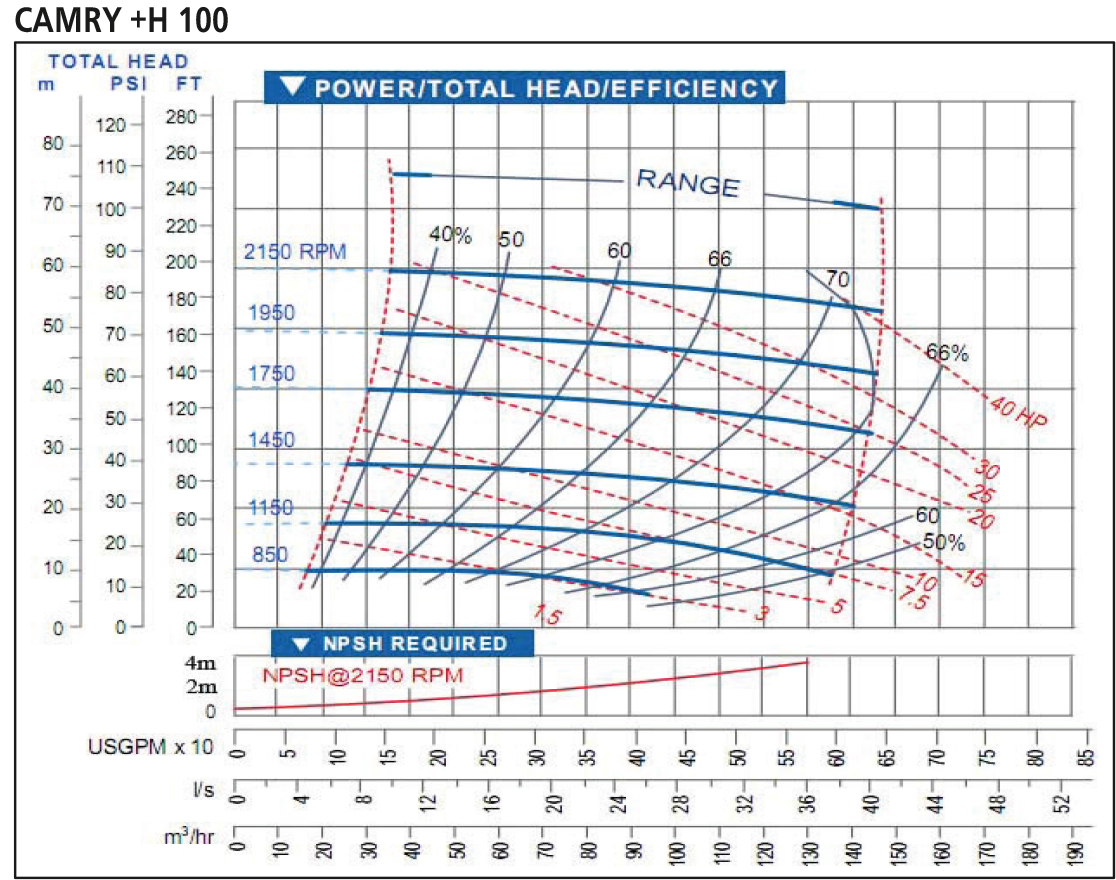

Camry Plus +H 100 100 279.4 28.5 148 59.5 2150 38.1 272

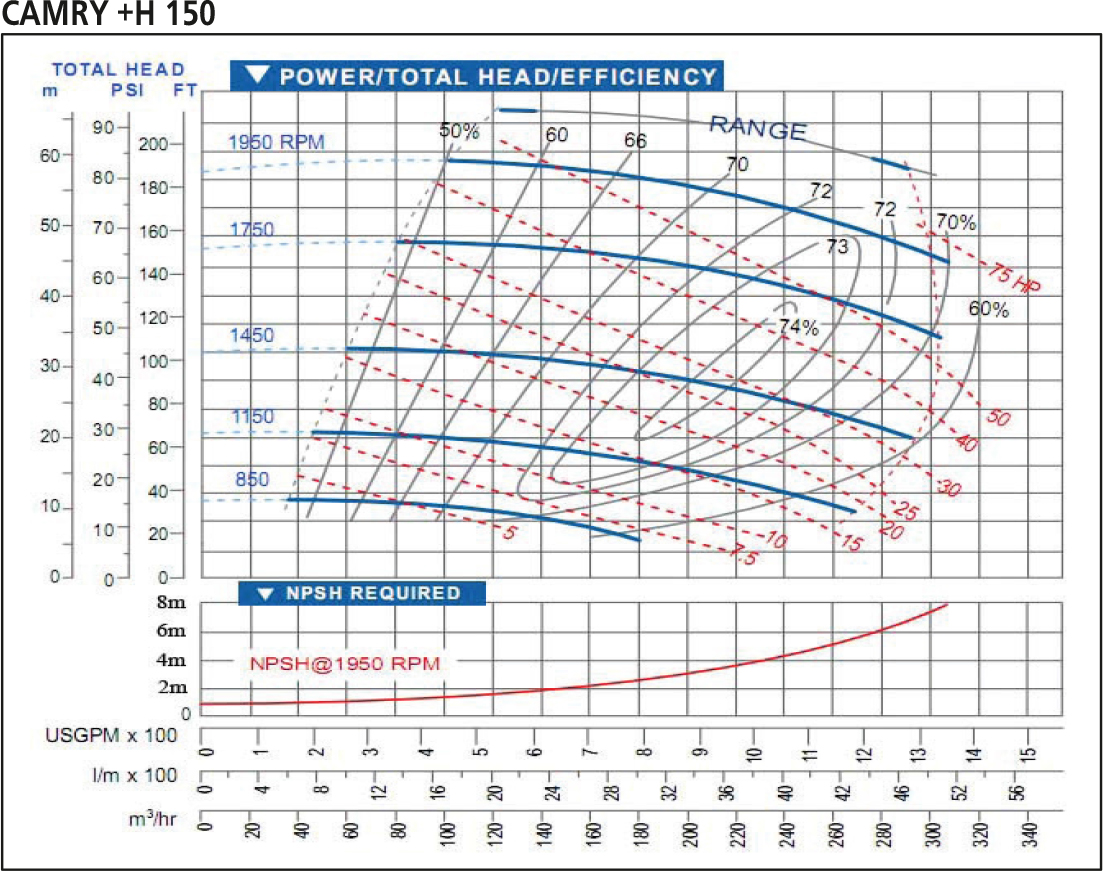

Camry Plus +H 150 150 318 31.8 306 58.5 1950 44.45 413

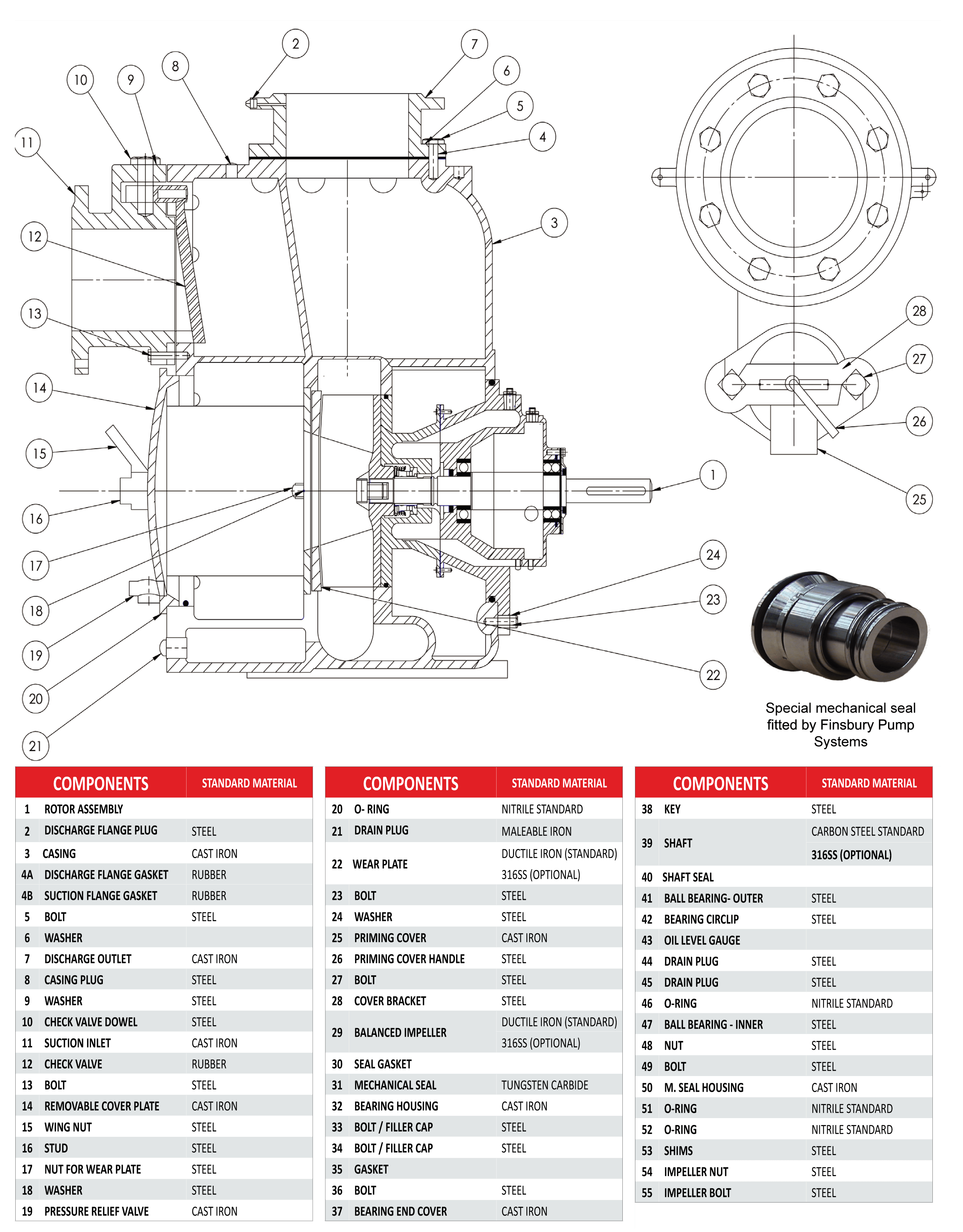

Exploded View

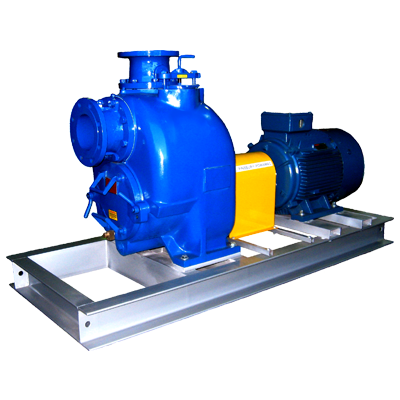

Electrical Driven

Wet prime waste water Trash Pumps

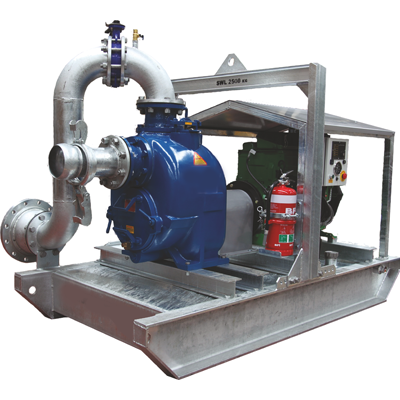

Engine Driven

4" Engine Driven - Camry Plus

//
